Triple pulleys for 10 mm rope

See detailed specifications

€57.50 Tax included

check_circle In stock
Une question ? +33 2 97 11 80 95

Une question ? +33 2 97 11 80 95

Detailed features

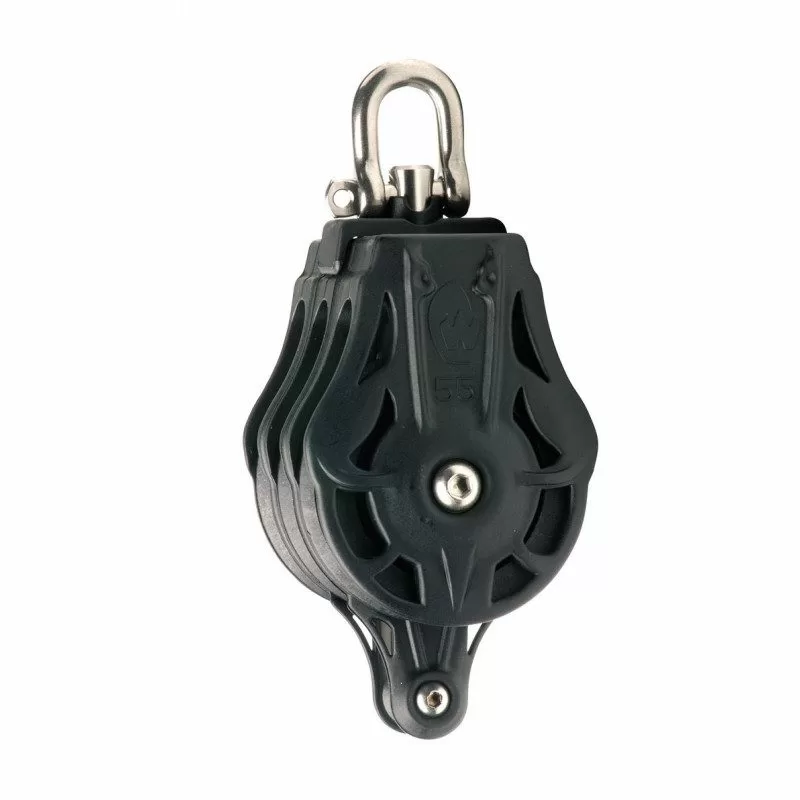

WICHARD 10 mm rope triple pulleys

These blocks are available with or without balls. Without balls, you can use them for mainsheet hoists, halyards, boom vang, spinnaker pole vang and mast step. With balls, you can use it for mainsheet and mainsheet tracks, spinnaker sheets and arms, genoa sheets and runners. With its excellent resistance to heavy loads, it will allow you a large choice of fasteners thanks to its universal head.

Characteristics of the WICHARD 10 mm triple pulleys

Designation EM: Manila swivel EMR : Ringot manila swivel

EMRT : Swivel shackle ringot cleat

Height 97 mm 117 mm 117 mm
Width 49 mm 49 mm 87 mm
Thickness 67 mm 67 mm 72 mm
C.T 560 kg 560 kg 360 kg
C.R 1,000 kg 1,000 kg 1,000 kg
Weight 0.243 kg 0,257 kg 0,357 kg
