Detailed features

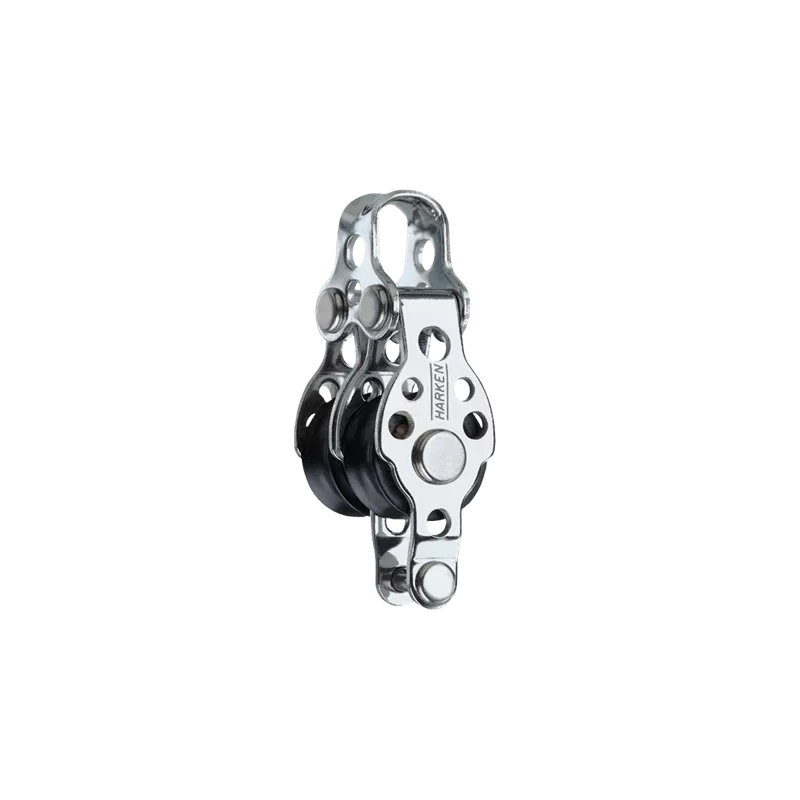

This block is one of Harken's smallest blocks. It is ideal for small synthetic fiber tuning lines on Hi-Tech dinghies. It features a patented bearing system that uses stainless steel balls captured in a groove
| Sheave diameter | Maximum rope diameter | Length | Weight | Maximum workload | Breaking load | |
| Simple | 16 mm | 5 mm | 38 mm | 12 g | 113 kg | 544 kg |
| Double | 16 mm | 5 mm | 54 mm | 28 g | 204 kg | 544 kg |
| Triple | 16 mm | 5 mm | 57 mm | 43 g | 318 kg | 544 kg |
