Detailed features

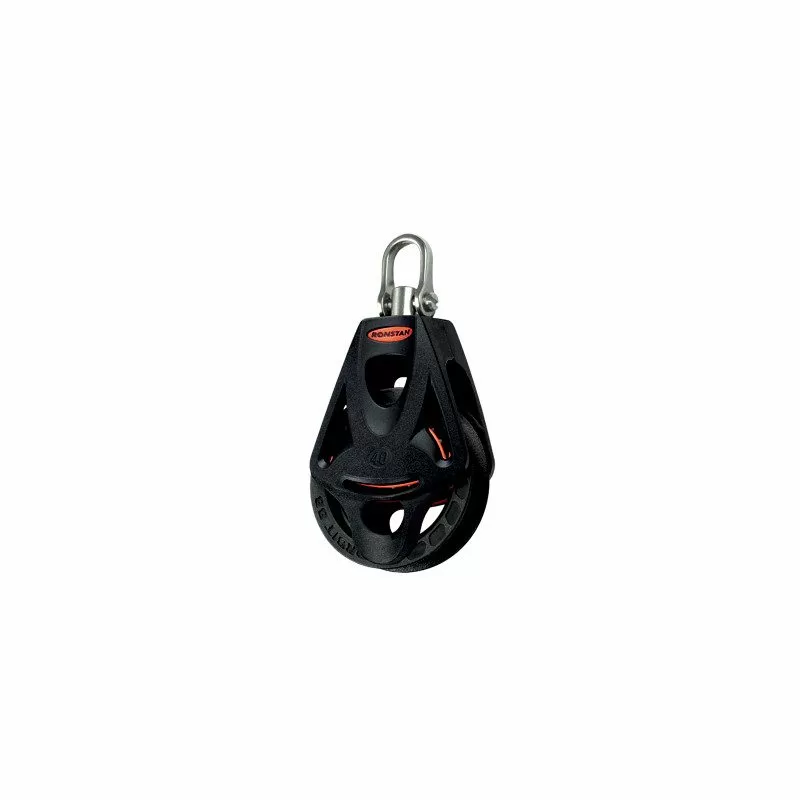

Ronstan's range of 40mm Single Orbit Winch Pulleys
No metal elements in these Orbit pulleys, except for the stainless steel ball bearings, everything is made of high-tech polymer resin capable of withstanding heavy loads. The special feature of the Orbit pulleys is also the optimization of the ball track, which frees up the central part of the pulley hub and thus reduces the weight. The Orbit Simple Series 40 is a range of blocks in several versions used for mainsheet and spinnaker sheets on dinghies, catamarans and sport keelboats up to 5 meters, but also for halyard, tackle and backstay reefing on boats up to 8 meters. They can also be used for trimming lines on boats over 8 meters. Very light, with a working load of 325 kilos and a breaking strength of 700 kilios, and a compact weight.
Ronstan Orbit 40mm Single Pulley Features
- Available in the following versions
- Single, flat deck RF45151
- Single, Ring RF45101
- Single, Ringot RF45111 (manual RF46112 on request)
- Single, Ringot, Adjustable Wedge RF45131
- Single, Ringot, Swivel RF45110
- Single, Stand Up, Ringot, Swivel RF45140
- Working load 325kg
- Breaking load 700kg
- Maximum string diameter: 9 mm
- Weight: from 32 grams for the flat bridge version to 100 grams for the version with ringot and adjustable wedge
In the same category
4 other products seleted for you-
<div class="fiche-txt">
<h2>The WICHARD 10 mm rope pulley</h2>
<div class="fiche-txt">This pulley is suitable for heavy loads. It is ideal for static manoeuvres. The sheave is protected by the flanges. Its universal head allows a large choice of attachments. Available with or without balls. Without balls, you can easily use it for mainsail hoists, halyards, boom vang, spinnaker vang and mast step. With balls, the block has two rows of balls on the sides, which gives it excellent performance under light loads. In this case, you can use it for mainsheet and sheet track, spinnaker sheets and arms, genoa sheets and backstays.</div>
<div class="fiche-txt"></div>
<h2>Characteristics of the WICHARD 10 mm rope pulley</h2>
</div>
available
-
<div class="fiche-txt">
<h2>WICHARD triple pulleys for 8-9 mm rope</h2>
<div class="fiche-txt">These pulleys are suitable for heavy loads and static manoeuvres. The 45 sheave rotates around the stainless steel shaft and is protected by the flanges. The universal head of these pulleys allows a wide choice of attachments. Available with or without balls. Without balls, they are perfect for mainsail hoists, halyards, boom vang, spinnaker sheets for sport catamarans and small keelboats. With balls, they have two rows of lateral balls, which gives them a very good performance under light load. Under high load, the forces are taken up by the stainless steel shaft without lateral friction. You can use them for mainsheet and sheet track, spinnaker sheets and arms, genoa sheets and backstays.</div>
<div class="fiche-txt"></div>
<h2>Characteristics of the WICHARD triple pulleys for 8-9 mm rope</h2>
</div>
available
-
<p style="text-align:justify;">The Harken ESP sheaves, with their simpler design, complete the current range of sheaves. The sheave shaft is mounted on bearings to withstand high static loads.</p>
<p style="text-align:justify;">This range of blocks offers an ideal solution for halyards, reefing lines, backstay hoists.</p>
available
-
<div class="fiche-txt">
<h2>Wichard's friction ring</h2>
<div class="fiche-txt">This ring combines performance, lightness and reliability. It is very resistant and can be used under heavy loads or with low traffic. It allows a good circulation of the ropes while limiting the wear of the latter.</div>
<div class="fiche-txt"></div>
<h2>Detailed characteristics of the Wichard FRX friction ring</h2>
</div>
available
•
