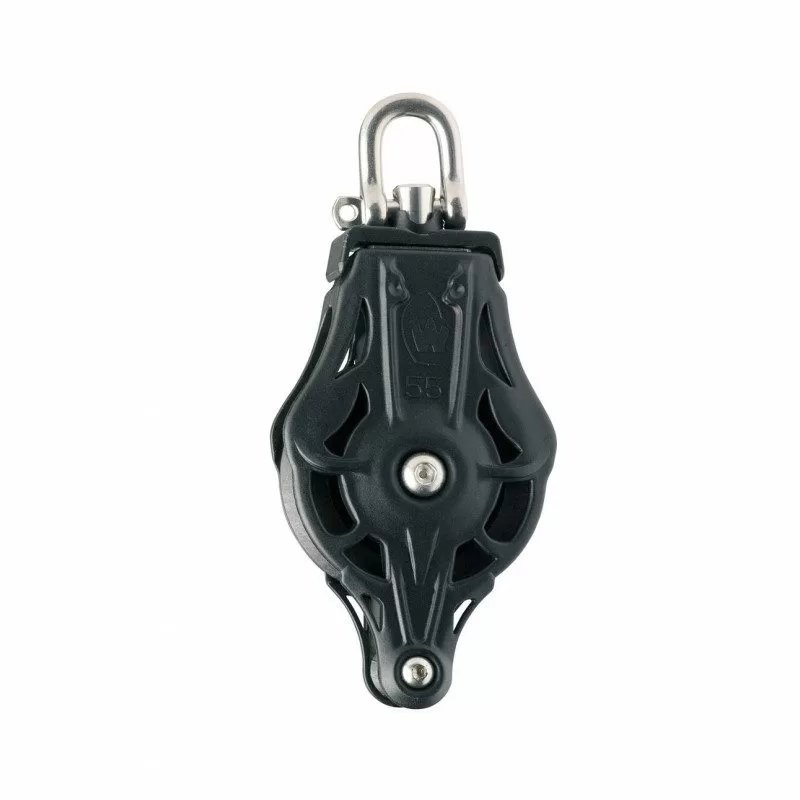

Single pulley for 8-9 mm rope

See detailed specifications

€23.00 Tax included

In stock

EM: Manila Swan
EMR: Emerillon Manille Ringot
EMRT : Swivel shackle Ringot cleat
AC: Ring Clevis
Ring
PP: Flat Bridge - M6 screw
ENC : To be recessed
EMQ: Carabiner swivel

Designation	EM	EMR	EMRT	AC	Ring	PP	ENC	PR	EMQ
Height	84 mm	101 mm	101 mm	72 mm	65 mm	52 mm	42 mm	60 mm	102 mm
Width	37 mm	37 mm	64 mm	37 mm	37 mm	37 mm	46 mm	58 mm	37 mm
Thickness	23 mm	23 mm	45 mm	23 mm	23 mm	20 mm	40 mm	40 mm	23 mm
C.T	320 kg	320 kg	200 kg	320 kg	320 kg	320 kg	320 kg	320 kg	400 kg
C.R	900 kg	900 kg	900 kg	500 kg	900 kg	900 kg	900 kg	900 kg	400 kg
Weight	0.071 kg	0.079 kg	0,118 kg	0.055 kg	0.051 kg	0.044 kg	0.053 kg	0,103 kg	0.076 kg

[description_short] =>

The WICHARD single pulley for 8-9 mm rope

This pulley is available in different versions with or without balls. Its universal head will allow a wide choice of fixations. It has an excellent resistance to heavy loads. The sheave is protected by the flanges. With balls, you can use it for mainsheet and track, spinnaker sheets and arms, genoa sheets and backstays. Without balls, you can use it for mainsheet hoists, halyards, boom vang and spinnaker sheets for sport catamarans and small keelboats. The fittings are in 316L stainless steel, the flanges in polycarbonate and the sheave in composite.

The characteristics of the WICHARD single pulley for 8-9 mm rope

EM: Manila Swan
EMR: Emerillon Manille Ringot
EMRT : Swivel shackle Ringot cleat
AC: Ring Clevis
Ring
PP: Flat Bridge - M6 screw
ENC : To be recessed
EMQ: Carabiner swivel

Designation	EM	EMR	EMRT	AC	Ring	PP	ENC	PR	EMQ
Height	84 mm	101 mm	101 mm	72 mm	65 mm	52 mm	42 mm	60 mm	102 mm
Width	37 mm	37 mm	64 mm	37 mm	37 mm	37 mm	46 mm	58 mm	37 mm
Thickness	23 mm	23 mm	45 mm	23 mm	23 mm	20 mm	40 mm	40 mm	23 mm
C.T	320 kg	320 kg	200 kg	320 kg	320 kg	320 kg	320 kg	320 kg	400 kg
C.R	900 kg	900 kg	900 kg	500 kg	900 kg	900 kg	900 kg	900 kg	400 kg
Weight	0.071 kg	0.079 kg	0,118 kg	0.055 kg	0.051 kg	0.044 kg	0.053 kg	0,103 kg	0.076 kg
