Detailed features

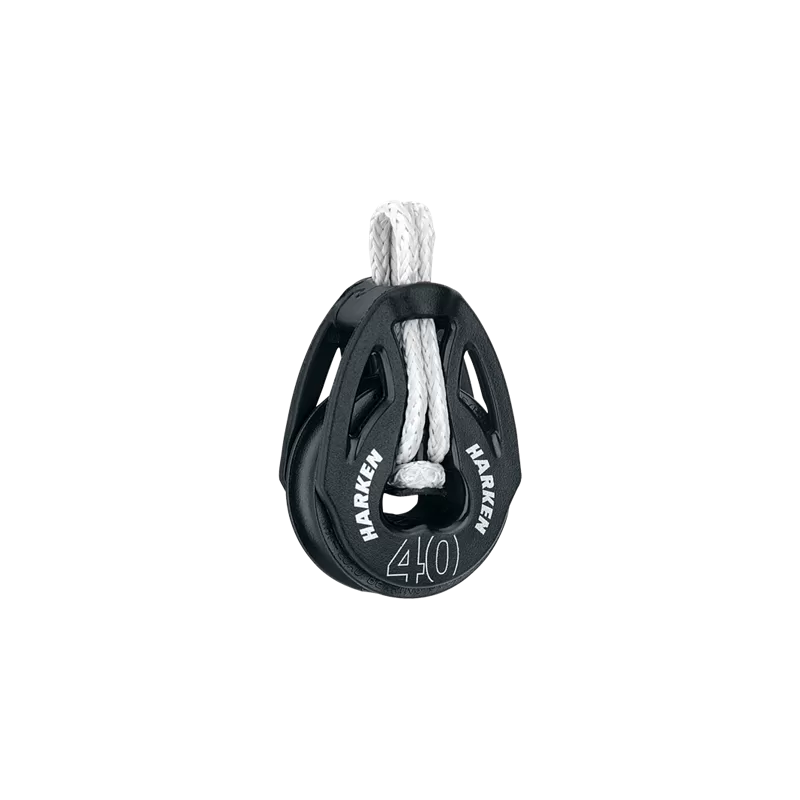

This model is the first without rivets or metal shackles, this T2 carbo pulley is ultra-resistant and made of composite materials.
It is ideal when used for trimming cars, mainsheet or vang sheets, building stepped hoists or crow's feet and any other system requiring the use of light blocks
The removable loop is inserted into the head of the pulley, then passed around the fixed point for a perfect hold. Product supplied with Dyneema loop.
| Sheave diameter | Maximum rope diameter | Length | Weight | Maximum workload | Breakage chrage | |
| 40 mm | 40 mm | 10 mm | 57 mm | 26 g | 220 kg | 544 kg |
| 57 mm | 57 mm | 11 mm | 79 mm | 59 g | 359 kg | 1080 kg |
