Detailed features

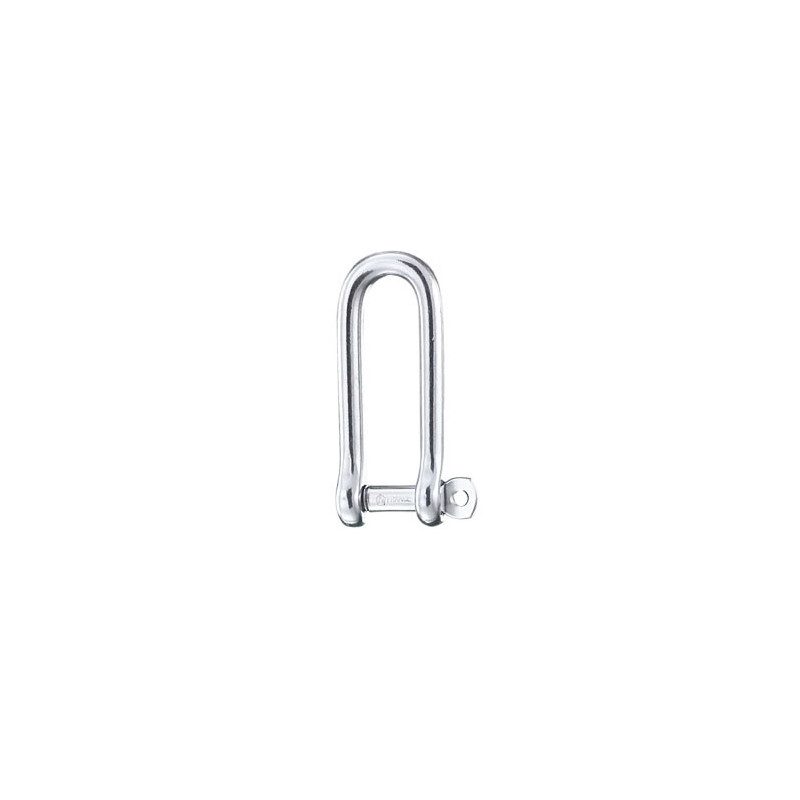

The Wichard brand reference, the long shackle with captive pin
Wichard shackles with captive pin allow the shackle to remain attached to the shackle body once unscrewed. The closing of the shackle is assured by its self-locking properties. Available in diameters from 4 to 10 mm, they are suitable for a wide range of uses on board a boat. Don't forget the golden rule with shackles: "Always have a few more in case...". Forged in France from 316L stainless steel and known for their properties and performance. The forged notches prevent the shackle from being unscrewed accidentally. It is one of the most important safety elements of the boat, so it is important to choose the right diameter according to the estimated workload. The straight shackle has many uses on board, since.
All the Wichard fittings are available on Picksea.com, advice and quotation on 02 85 52 65 01
Discover the wide range of shackles, cleats, sticks, ropes, pulleys and hardware accessories from leading brands such as Ronstan, Harken, Wichard, Spinlock on our Boating Gear and Equipment section. The best brands of boating equipment are now available on Picksea, the best selection of boating equipment.
Detailed characteristics of Wichard Long Shackles with captive pin 4mm to 10 mm (ref 1411, 1412, 1414, 1415)
| Reference | Ø | Workload | Breaking load | Height | Width | Weight |
| 1411 | 4 mm | 320 kg | 1,000 kg | 31 mm | 8 mm | 9 g |
| 1412 | 5 mm | 480 kg | 1,500 kg | 39 mm | 10 mm | 17 g |
| 1413 | 6 mm | 680 kg | 2,200 kg | 46 mm | 12 mm | 30 g |
| 1414 | 8 mm | 1000 kg | 3,600 kg | 62 mm | 16 mm | 68 g |
| 1415 | 10 mm | 1520 kg | 5,200 kg | 78 mm | 20 mm | 137 g |
